Techwin

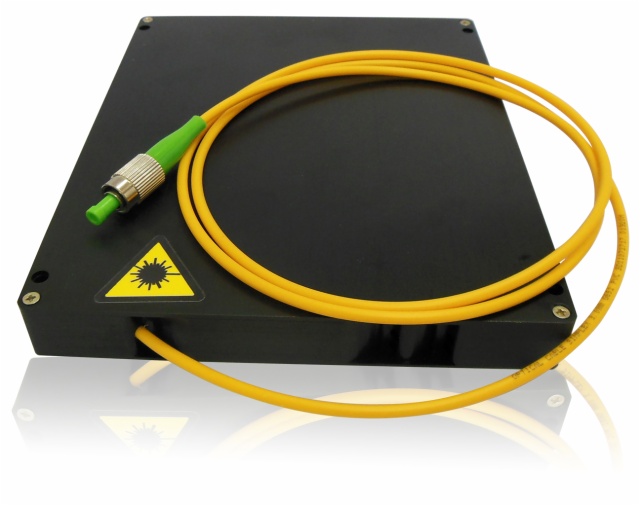

1064nm Short Pulse Fiber Laser for LiDAR

Item Code: Features:Techwin 1064nm pulse fiber laser for LiDAR is a high peak power, high pulse energy laser source. Techwin 1064nm pulse fiber lasers for are ideal sources for applications of 3D scanning, telemetry and range finding.
  • Description

Techwin 1064nm pulse fiber laser for LiDAR is a high peak power, high pulse energy laser source. Using MOPA configuration and all-fiber optimized design offer the high peak power and near diffraction-limited quality output beam. Techwin 1064nm pulse fiber lasers for are ideal sources for applications of 3D scanning, telemetry and range finding.



Techwin 1064nm pulse fiber laser for LiDAR employ module package with compact and rugged design, integrated with external trigger and monitor output for synchronization. It is easily deployed and maintenance-free, ensuring a long-life and cost-effective operation. The user also can adjust pulse width and repetition rate of the laser by connecting computer. It is suitable for system integration.

Features:
•High peak power: up to 10kW
•Average power: 5W
•Repetition rate adjustable: 30-500 kHz
•Pulse energy: 100μJ
•Excellent beam quality

Applications:
•LiDAR
•3D scanning
•Range finding
•Target detection
•Telemetry
