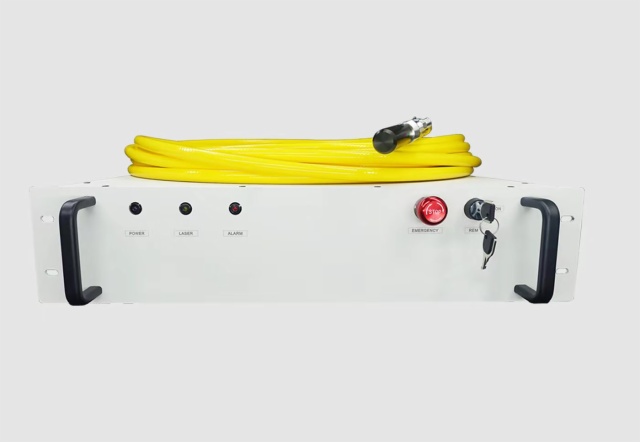

Techwin YFL-1000SM Ytterbium Single- mode CW Fiber Laser System, adopts latest industry technology and the optimization design, with high electro-optical conversion efficiency, high lifetime, high safety and reliability. The unit with high-quality output beam and strong capability on resisting high-reflective, can be widely used in all kinds of materials of laser cutting, welding, punching, 3D printing and other high-end smart manufacturing.
Techwin Fiber Laser, which is based on Internet technology, established a scientific after-sales service system. Each device has a unique identity code (the internal storage of original technology and material information). Can achieve remote online real-time monitoring; can provide users with equipment fault early warning and efficient technical support and good after-sales service.
|
Techwin Fiber Laser with high quality, high reliability and excellent cost performance, can meet the requirements of the customer diversification and personalized customization. It also with good after-sales service, is the ideal choice for system integrates and equipment manufacturers.
|
Features
▶High wall plug efficiency, greatly reduce power consumption
▶Strong capability on resisting high-reflective, suitable for different materials processing
▶Remote real-time monitoring
▶High lifetime, high safety and reliability
▶Can achieve personalized customization
▶Excellent after-sales service system
▶Excellent cost performance
Applications
▶Laser cutting
▶Laser welding
▶Laser cladding
▶Laser brazing
▶Laser thermolizing
|
Specification
|
Performance
|
Min.
|
Typ.
|
Max.
|
Supplement
|
|
Optic Feature
|
Central wavelength
|
(nm)
|
1070
|
1080
|
1090
|
|
|
Spectral bandwidth
|
(nm)
|
|
3
|
5
|
-3dB
|
|
Output optical power
|
(W)
|
|
1000
|
|
|
|
Power ADJ. range
|
(%)
|
10
|
|
100
|
|
|
Output power stability
|
(%)
|
|
1
|
1.5
|
100% continuous ＞1h
|
|
|
2
|
3
|
100% continuous ＞24h
|
|
Beam quality
|
(M2)
|
|
|
1.3
|
QBH-20/400
|
|
|
|
2.8
|
QBH-50/360
|
|
Modulation frequency.
|
(KHz)
|
|
|
20
|
100% output
|
|
Input fiber
|
Diameter
|
(μm)
|
|
100
|
|
NA:0.22rad
|
|
Beam quality
|
(BPP)
|
|
3
|
3.5
|
QBH-100/360
|
|
Output fiber 1
|
Diameter
|
(μm)
|
|
300
|
|
NA:0.22rad
|
|
Beam quality
|
(BPP)
|
|
9
|
10.5
|
Beam Parameter Product* (86%)
|
|
Output fiber 2
|
Diameter
|
(μm)
|
|
600
|
|
Na:0.22rad
|
|
Beam quality
|
(BPP)
|
|
18
|
21
|
Beam Parameter Product*(86%)
|
|
Glow power
|
(mW)
|
0.3
|
|
1.0
|
|
|
Output Feature
|
Output connector
|
|
|
QBH
|
|
Customize
|
|
Output fiber core-diameter
|
(μm)
|
|
20
|
100
|
|
|
Output fiber length
|
(m)
|
|
15
|
|
Customize
|
|
Output fiber bending radius
|
(mm)
|
200
|
|
|
|
|
Working mode
|
|
Continuous modulation
|
CW/Modulate
|
|
Polarization state
|
|
Random
|
Random
|
|
Electrical Cooling Feature
|
Telecommunication port
|
|
RS232 / AD / Super terminal
|
|
|
Remote telecommunication
|
|
APP
|
Customize
|
|
Power supply
|
(V)
|
|
220
|
|
Two phase three wire
|
|
Power consumption
|
(KW)
|
|
|
3.0
|
|
|
Cooling method
|
|
Water-cooling
|
Circumscribed
|
|
Coolant temp.
|
(°C)
|
21
|
|
25
|
|
|
Coolant flow
|
(L/min)
|
|
10
|
|
|
|
General Feature
|
Working environment temp.
|
(°C)
|
10
|
|
40
|
|
|
Working environment humidity
|
(%)
|
10
|
|
85
|
|
|
Storage temp.
|
(°C)
|
-10
|
|
60
|
|
|
Weight
|
(kg)
|
|
38
|
|
|
|
Structure
|
|
Machine cabinet
|
|
|
Size (W) × (L) × (H)
|
(mm)
|
482.6 ×451×104
|
With hook
|
