Fiber Identifier TW3306

  • Fiber Identifier
  • Fiber Identifier
Item Code:TW3306 Features:Optical Fiber Identifier TW3306A is an essential installation and maintenance instrument. By inserting the fiber into its adapter head, it can identify SM optical fibers without any damage by detecting the optical signals being transmitted through them so as to avoid the opening of the fiber at the splice point for identification and thus avoids the interruption of the service.In the presence of traffic, the intermittently audible tone is activated.The TW3306A optical fiber identifier also allows relative core power display and identification of the 270Hz,1kHz and 2kHz frequencies. When they are used to detect the frequency, the continuously audible tone is activated.There are four types of adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. The TW3306A optical fiber identifier is powered by a 9V alkaline battery.
  • Description

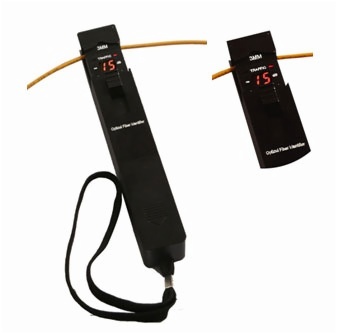

Optical Fiber Identifier TW3306A
is an essential installation and maintenance instrument. By inserting the fiber into its adapter head, it can identify SM optical fibers without any damage by detecting the optical signals being transmitted through them so as to avoid the opening of the fiber at the splice point for identification and thus avoids the interruption of the service.In the presence of traffic, the intermittently audible tone is activated.The TW3306A optical fiber identifier also allows relative core power display and identification of the 270Hz,1kHz and 2kHz frequencies. When they are used to detect the frequency, the continuously audible tone is activated.There are four types of adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. The TW3306A optical fiber identifier is powered by a 9V alkaline battery.

Features

  • Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) without any damage of the fibers.
  • Displays the core power of the fibers (-50~+0dBm)
  • Low bending loss and highly efficient output
  • Easy-to-replace adaptors (Ø0.25, Ø0.9, Ø2.0, Ø3.0 to match various optical cables)
  • Machanical damp design of adapter heads to ensure the fiber without damage.
  • “ONE KEY” operation design, easy-to-use.

Applications

Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements

Specifications

Type

TW3306A



Identified Wavelength Range

800-1700 nm



Identified Signal Type

CW, 270Hz±5%,1kHz±5%,2kHz±5%



Detector Type

Ø1mm InGaAs 2pcs



Adapter Type

Ø0.25 (Applicable for Bare Fiber)



Ø0.9 (Applicable for Ø0.9 Cable )



Ø2.0 (Applicable for Ø2.0 Cable )



Ø3.0 (Applicable for Ø3.0 Cable )



Signal Direction

Left & Right LED



Optical Power Reading

-50~+0dBm



Signal Frequency

270Hz, 1kHz, 2kHz



Power Supply

One 9V Alkaline battery



Operating Temperature

-10-+60℃



Storage Temperature

-25-+70℃



Dimension (mm)

195X30X27



Weighgt (g)

235





MODEL

INCLUDES



TW3306A

TW3306A Optical Fiber Identifier, 4pcs adapter heads, Alkaline battery, Instruction Manul, Contton Swabs and Soft Carrying case
