AQ7275 OTDR has improved to suit your changing needs:
-
Wide Range of Modules Available
-
Enhanced support of FTTH to Metro, Core Network
-
High Dynamic Range (45dB)
-
Short Dead Zone (0.8 m)
-
Optional built in Dummy Fiber
Wide Range of Modules Available
|
Applicable Fiber |
No. of Wavelengths |
Wavelength |
Dynamic Range |
Model |
Descriptions |
|
SMF |
1 |
1650nm |
30dB |
735031-New |
1650nm model, supporting maintenance wavelength of 1650nm including
1310/1550nm cut filter. |
|
2 |
1310/1550nm |
37/35dB |
735032 |
Standard model for installation and maintenance of FTTH |
|
2 |
1310/1550nm |
40/38dB |
735033 |
Standard model for installation and maintenance of Metro and Access network |
|
2 |
1310/1550nm |
43/41dB 45/43dB(typ.) |
735034-New |
High dynamic range model for installation and maintenance of Core and Metro network |
|
3 |
1310/1490/1550nm |
34/30/32dB |
735035-New |
3-wavelength model for PON system, supporting 1490nm |
|
3 |
1310/1550/1625nm |
40/38/33dB |
735036-New |
3-wavelength model, supporting a maintenance wavelength of 1625nm including 1310/1550nm cut filter |
|
3 |
1310/1550/1650nm |
40/38/30dB |
735037 |
3-wavelength model, supporting a maintenance wavelength of 1650nm including 1310/1550nm cut filter. |
|
3 |
1310/1550/1625nm |
40/38/36dB |
735038-New |
3-wavelength model, supporting a maintenance wavelength of 1625nm |
MMF
SMF |
4 |
850/1300 nm
1310/1550 nm |
22.5/24
dB(62.5GI)
21/22.5dB(50GI)
40/38 dB(SM) |
735041-New |
4-wavelength model for installation and maintenance of LAN and FTTH with support for both multimode and single mode fiber. Dynamic range is specified when measuring 50GI fiber. |

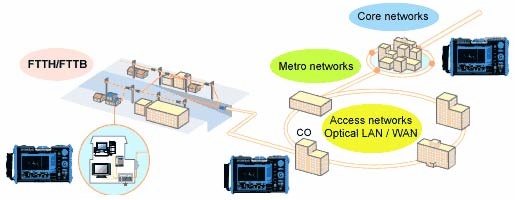

Meets a broad range of measurement needs from FTTH to Metro, Core network.
