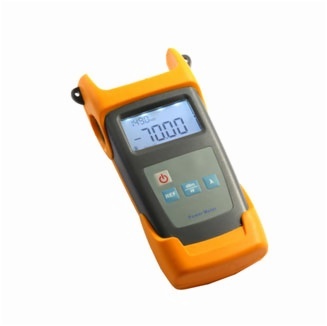

Power Meter TW3211
TW3211 optical power meter Is a handheld optical power meter, newly released in 2007, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. A Ø1.0mm photosensitive area photodiode is used to significantly improve the stability and the reliability. It features ingenious appearance, a wide range of power measurement, high accuracy, an user self-calibration function and a reference power level storage.
Features
- Wide dynamic measurement range (up to 80dB)
- Reference power level storage(Ref Setting)
- User self-calibration function
- Comfortable LCD display and backlight LCD display supports
night operation.
- Power measurements in dBm or mw and insertion loss in dB
- Optional 10 minutes Auto-off function
- AA alkaline batteries can last more than 140 hours, AC adaptor also available
- Low battery power indication
Applications
Maintenance in Telecom
Maintenance CATV
Test Lab of Optical Fibers
Other Fiber Optic Measurements
Specifications
MODEL
|
TW3211A
|
TW3211C
|
Wavelength(nm)
|
800~1700nm
|
Detector Type
|
InGaAs
|
Detector Size
|
Ø 1.0mm
|
Measurement Range (dBm)
|
-70~+10
|
-50~+30
|
Uncertainty
|
±5%
|
Calibrated Wavelength(nm)
|
850,1300,1310,1490,1550,1625
|
Resolution(dB)
|
0.01
|
Optical Connector
|
FC(interchangeable SC,ST) / as well as 2.5mm universal
|
Power Supply
|
Alkaline Battery(3 AA 1.5V batteries); AC Adaptor(9V)
|
Battery Operating Time
|
140 h with 1.5V Battery(3pcs)
|
Operating Temperatrue(℃)
|
-10 ~ +60
|
Storage Temperatrue(℃)
|
-25 ~ +70
|
Relative Humidity
|
0 to 95% (non-condensing)
|
Dimension(mm)
|
190X100X50
|
Weight(g)
|
370
|
MODEL
|
INCLUDES
|
|
All TW3211 Models
|
TW3211 Optical Power Meter, 3pcs 1.5V batteries, AC Adaptor, Instruction Manual, Cotton Tampon and Soft carrying case.
|
|
