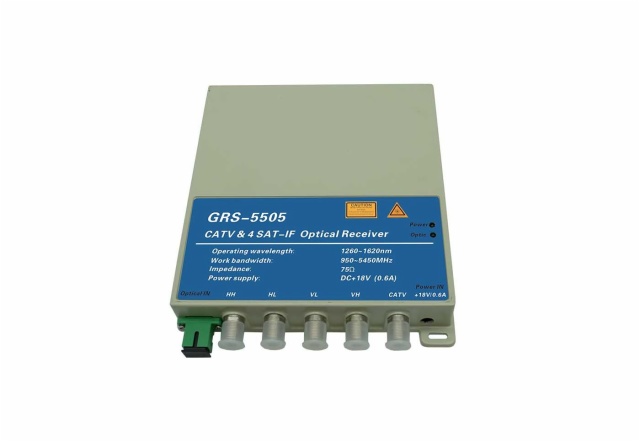

CATV & 4 SAT-IF Optical Receiver GRS-5505 (47~862MHz & 950~5450MHz)

  • CATV & 4 SAT-IF Optical Receiver
  • CATV & 4 SAT-IF Optical Receiver
Item Code:GRS-5505 (47~862MHz & 950~5450MHz) Features:GRS-5505, a kind of high performance 4-band SAT –IF O/E converter whichis compatible with CATV (include DAB, DTT, FM). It adopts the technology of frequency division multiplexing, can receive the 950~5450MHz (4 SAT-IF overlay) and 47~862MHz (CATV) optical signal that transmitted by one fiber. GRS-5505/WD, GRS-5505/WF, can be compatible with any FTTx PON, to realize internet, Full-Band SAT-TV & CATV Triple-ply network and FTTH. GRS-5505 the forepart of the satellite antenna adopt satellite full-channel overlay LNB, such as TOL32, TWL01 and HDS-55A optical transmitter.
  • Description

Product description



GRS-5505, a kind of high performance 4-band SAT –IF O/E converter whichis compatible with CATV (include DAB, DTT, FM). It adopts the technology of frequency division multiplexing, can receive the 950~5450MHz (4 SAT-IF overlay) and 47~862MHz (CATV) optical signal that transmitted by one fiber.

GRS-5505/WD, GRS-5505/WF, can be compatible with any FTTx PON, to realize internet, Full-Band SAT-TV & CATV Triple-ply network and FTTH.

GRS-5505 the forepart of the satellite antenna adopt satellite full-channel overlay LNB, such as TOL32, TWL01 and HDS-55A optical transmitter.



Product features

▶Adopt one fiber to transmit Full-channels direct-broadcast satellite TV and CATV signal with high quality

▶GRS-5505 (Can connect 5*N multi-way satellite switch, and serve for multi-users)

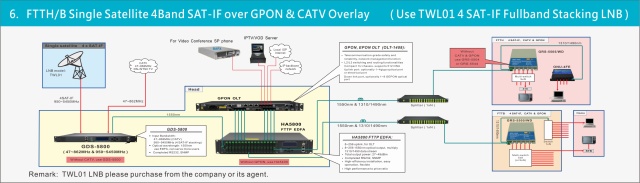

Main application

▶FTTH for DBS

▶Triple-play Overlay DVB-S

▶4 SAT - IF overlay/ cleavage overlay optical fiber links

Technical index

Performance

Index

Supplement

Min.

Typ.

Max.

Optical feature

CATV work wavelength

(nm)

1260



1620

GRS-5505

1540



1563

GRS-5505/WF, GRS-5505/WD

Pass wavelength

(nm)

1310, 1490

GRS-5505/WD

Channel isolation

(dB)

40







Responsibility

(A/W)

0.85





1310nm

0.9





1550nm

Receiver power

(dBm)

-15







Optical return loss

(dB)

40

45



FC/PC, SC/PC

55

60



FC/APC, SC/APC

Optical fiber connector



SC/APC

Optional FC/APC, SC/PC, FC/PC

Frequency feature

Reception frequency range

4 SAT-IF Converted

(MHz)

950



5450



VL Converted

950



1950



VH Converted

1950



3000



HL Converted

3300



4400



HH Converted

4400



5450



Frequency range

Output

VL

(MHz)

950



1950



VH

1100



2150



HL

950



1950



HH

1100



2150



Gain ripple across band

(dB)

-3.0



+3.0



Gain ripple across 40MHz

(dB)

-0.5



+0.5



Channel isolation

(dB)



30





In band spurious power

(dB)

-25







Out band spurious power

(dB)





-60



Gain range

(dB)

-1.0



36



Output level

(dBm)

-65



-25



Integrated phase noise

(dB)



4.0



1KHz~13KHz

OIP3

(dB)

+10







Output return loss

(dB)



10





Output impedance

(Ω)



75





RF number of connector output





4





RF connector



F-Female



TV RF  feature

Working frequency

CATV

(MHz)

47



862



DAB

213



230



DTT

470



854



FM

88



108



Flatness in band

(dB)

-0.75



+0.75



Output level

(dBμV)



70



Pin=-12dBm

Output impedance

(Ω)



75





Number of output out

(ps)



1





Return loss

(dB)

14







RF port



F-Female



Analog TV feature

Test channel

(CH)

59CH(PAL-D)



OMI

(dB)



3.8





CNR1

(dB)



53.5



Pin=0dBm

CNR2

(dB)



45.2



Pin=-8dBm

CTB

(dB)





-65

Pin:+3~-8dBm

CSO

(dB)





-62

Pin:+3~-8dBm

Digital TV feature

OMI

(dB)



4.3





MER

(dB)

36





Pin=-13dBm

BER

(dB)





1.0E-9

Pin:+3~-13dBm

General feature

Power supply (DC)

(V)



+18





Power consume

(mA)





300



External power supply input voltage

(V)

90



265



Operating temp.

(℃)

-30



+60



Storage temp.

(℃)

-40



+70
