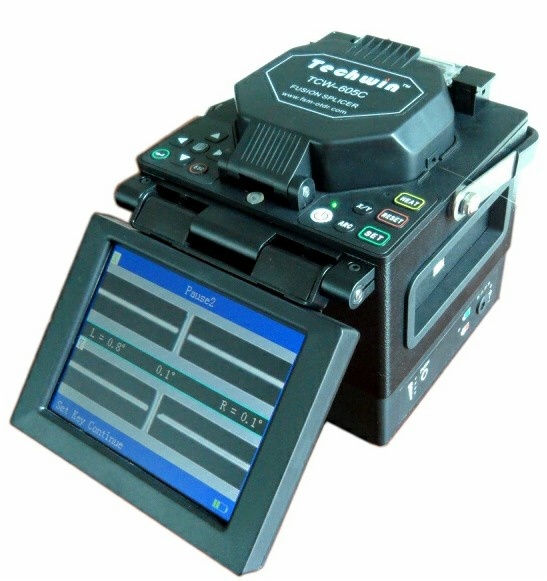

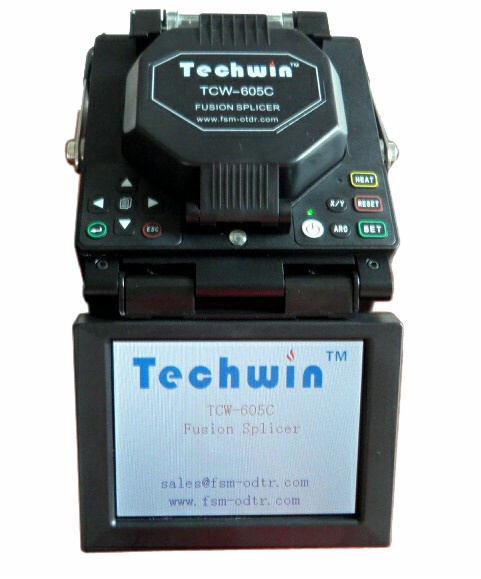

Fusion Splicer TCW-605C

Product Description:


The TCW-605C Series adopt high-speed image processing technology and special precision- positioning technology, automatically finish the whole process of fiber fusion in 8 seconds typically, TFT LCD monitor displays all steps of fiber fusion clear at a glance.



Widely used for SM and MM Quartz Fiber with diameter 80-150μm, coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less.



Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications.

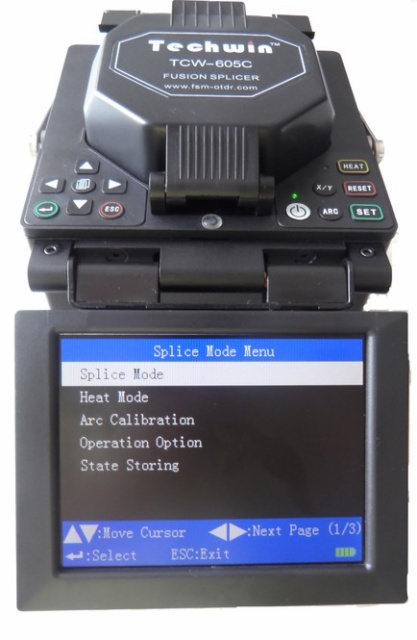

Support Chinese, Japanese, Germany, Spanish, Russian, Korea, Portuguese, French, Italian, Turkish, English etc.



Features:



l          Anyone anytime anywhere can use easily

l        Not only a Fusion Splicer, but also your partner who make your job easy and happy

l        5.6 inch TFT color LCD monitor with anti-reflective coating

l        The advanced core to core fiber profile alignment system(PAS)

l        ARC Calibration FREE system

l        ARC Calibration sub-menu included in the Menu too, can do the ARC Calibration by Manual when necessary

l        X/Y axes was displayed or both X and Y were displayed simultaneously, Magnification up to 300 times

l        8 seconds splicing time, 30 seconds Heat-Shrinking

l        Battery capacity was display in real time, precisely

l        Built-in high capacity battery, support 220 cycles(splicing /tube heating), to meet one days’ work

l        Long Electrode Lifetime, up to 4000 times

l        The new wind-cover design, enhance the ability to prevent the dust & wind, Max. wind velocity of 15m/s

l        Two Splicing modes: auto, manual

l        Built-in super high-brightness LED supply convenience for night work

l        Auto calculate splicing loss based dual camera cladding axis alignment data

l        4000 results Storage

l        Small bulk and light weight, only 2.8kg include battery

l        2.0 USB data interface &VGA

l        Carrying Case can act as work table to splice the fiber

l        One year warranty( TWO years or THREE years warranty is available for special order)





Optical Specifications

TCW-605C

Fiber Types

Single mode (ITU-T G.652), multimode (ITU-TG.651), dispersion shifted (ITU-TG.653), non-zero dispersion shifted (ITU-TG.655) and other SMF including ITU-TG657 fibers

Cable Types
Suitable for 0.25mm bare fiber, 0.9mm buffered fiber, Splice on Connector, Flat FTTH Fiber Cable(Drop Cable),Clamp Change Free

Average Splicing Loss

0.02dB with G.652 and G.657, 0.01dB with G.651 and 0.04dB with G.653 and G.655

Splicing Time

Typical splicing time:8s

Heating Time

Typical heating time:30s

Return Loss

60dB or greater

Fiber Coating

100μm to1000μm

Fiber Cladding

80μm to 150μm

Fiber Cleave Length

8~16mm(coating diameter<250µm), 16mm(coating diameter 250~1000µm)

Program

10 units factory setting SM program,10 units factory setting MM program,               and 30 units user setting SM program,30 units user setting MM program

Align Mode

Advanced profile alignment system(PAS)

Storage

4000 results

Data Transmission

USB port

Heater

Built-in tube heater, AUTO Heat Mode.

Heat-Shrinkable Tube

40mm,60mm and a series of micro Heat-Shrinkable Tubing

Screen Display

Two CMOS cameras,5.6 inch 640*480 TFT LCD, core of the fiber is clearly visible

Lighting for Construction

Built-in super High-brightness LED supply convenience for night work

Magnifications

300X for single X or Y view,

300X for X and Y view(left/right),150X for X and Y view(up/down)

Work mode

Automatic, Manual

General Specifications



Power Supply

Alternating Current:100-240 50Hz/60Hz 30W, Direct current:13.5V/4.5A           Built in 11.1V Li-ion battery charger and AC adaptor

Battery Life

Support 220 cycles( splicing and tube heating)on one charge(3.5hours) at least

Battery Lifetime

Cycle life up to 300~500 times, replaceable

Tension Test

2N

Electrode Lifetime

>4000 times, replaceable

Operating Temperature

-25°C ~ 50°C

Storage Temperature

-40°C ~ 80°C

Relative Humidity

0 to 95% (non-condensing)

Work Altitude

0~5000 meters above sea level

Instrument Weight

2.3kg (no battery) with AC/DC adapter, 2.8kg(including battery),

Dimensions(L x W x H)

160mm×150mm×145mm

Package G.W/N.W

10.0/9.0kg

Package (L x W x H)

620mm×420mm×360mm





STANDARD PACKAGE:

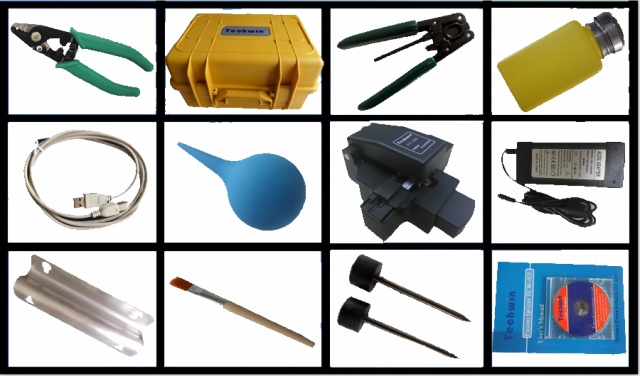

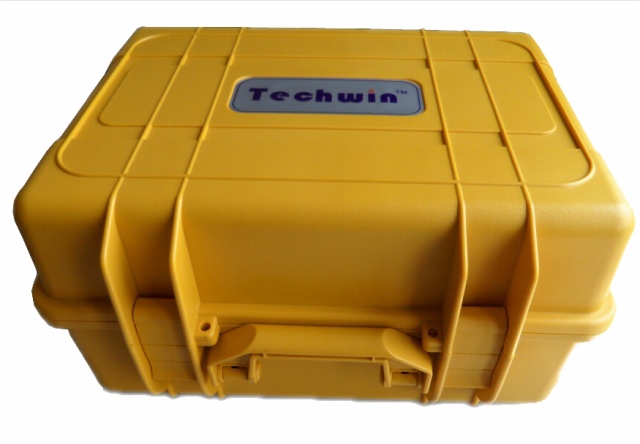

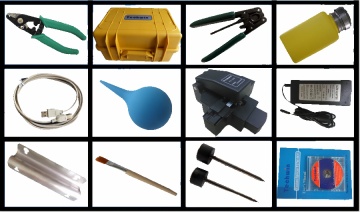

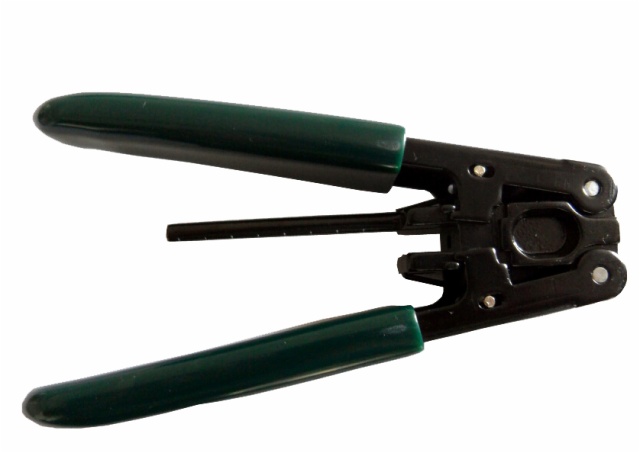

ARC Fusion Splicer, Carrying Case, High Precision Fiber Cleaver, Tri-hole Fiber Coat Stripper, AC Adapter/Battery Charger, Battery Charger Cord, Battery Pack, Spare Electrodes(one pair), Blower Brush, V-groove Cleaning, Quick Reference Guide, Video Instruction Manual, Cooling Tray, Alcohol Dispenser, Monitor Coating, Monitor Cover, USB Cable.
