Item Code:TCW-605S Features:Fusion Splicer TCW-605S(Equal to Fujikura FSM-60S, Sumitomo Type-39 etc) The World's Fastest and Easiest Core-Aligning Fusion Splicer We attend the main exhibition every year: OFC in USA, CommunicAsia in Singapore, ECOC in Europe,You are welcome to visit us there to feel the quality and performance High-resolution true color 5.6 inch LCD display X/Y axes were displayed meanwhile, Magnification up to 220 times 8 seconds splicing time, 28 seconds Heat-Shrinking Long Electrode Lifetime, up to 4000 times
  • Description

The World's Fastest and Easiest Core-Aligning Fusion Splicer Stable Reliable Affordable


Fusion Splicer TCW-605S(Equal to Fujikura FSM-60S, Sumitomo Type-39 etc)

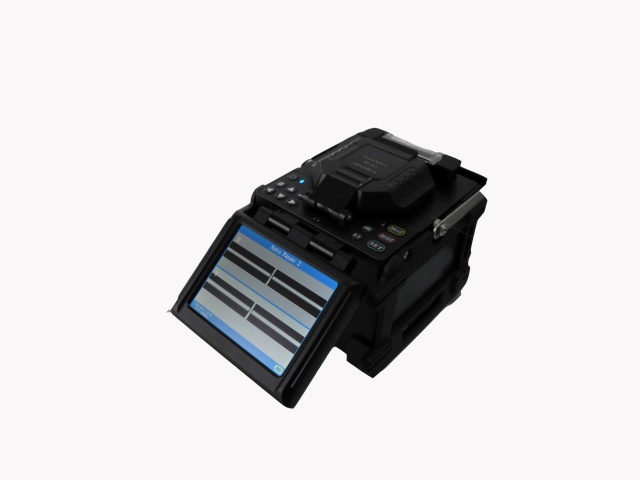

The TCW-605S Series adopt high-speed image processing technology and special precision- positioning technology,automatically finish the whole process of fiber fusion in 8 seconds typically, TFT LCD monitor displays all steps of fiber fusion clear at a glance.
Widely used for SM and MM Quartz Fiber with diameter 80-150μm, coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less.
Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications.
Support Chinese, Japanese, Germany, Spanish, Russian, Korea, Portuguese, French, Italian, Turkish, English etc.
 Anyone anytime anywhere can use easily
 Not only a Fusion Splicer, but also your partner who make your job easy and happy
 The rugged construction plus improved reliability by resisting shock, dust, and rain

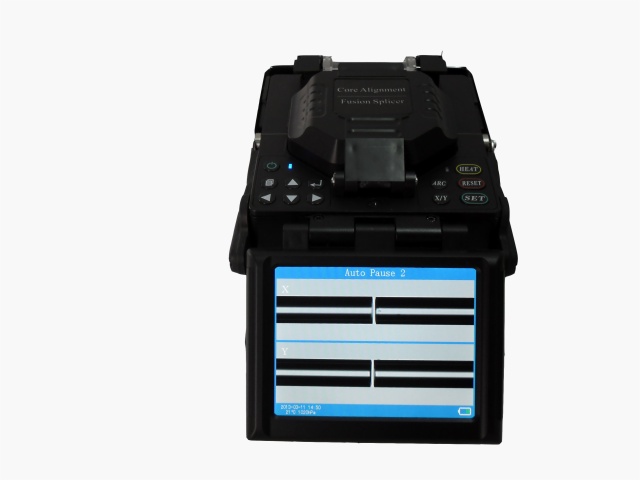

 5.6 inch TFT color LCD monitor with anti-reflective coating
 The advanced core to core fiber profile alignment system(PAS)
 ARC Calibration FREE system
     ARC Calibration sub-menu included in the Menu too, can do the ARC Calibration by Manual when necessary
 X/Y axes was displayed or both X and Y were displayed simultaneously, Magnification up to 300 times
 8 seconds splicing time, 28 seconds Heat-Shrinking
 Battery capacity was display in real time, precisely

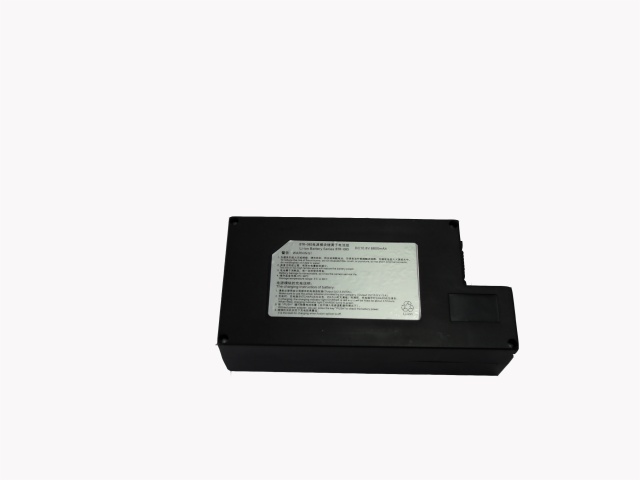

 Built-in high capacity battery, support 220 cycles(splicing /tube heating), to meet one days’ work
 Long Electrode Lifetime, up to 4000 times
 The new wind-cover design, enhance the ability to prevent the dust & wind, Max. wind velocity of 15m/s
 Two Splicing modes: auto, manual
 Built-in super high-brightness LED supply convenience for night work
 Auto calculate splicing loss based dual camera cladding axis alignment data
 Small bulk and light weight, only 2.8kg include battery
 4000 results Storage
 2.0 USB data interface &VGA

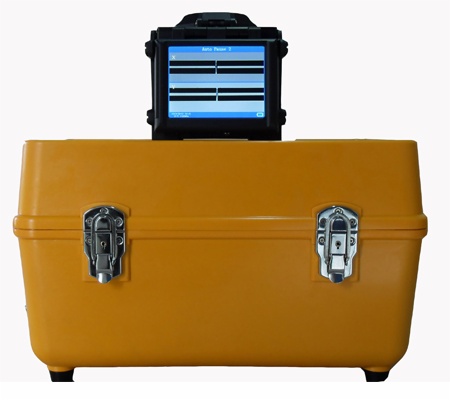

 Carrying Case can act as work table to splice the fiber
 One button operation to finish results download or software update
 Close shield splice automatically, Close heater lid heat automatically
 One year warranty( TWO years or THREE years warranty is available for special order)
Technical Specifications
Optical Specifications
Fiber Types
Single mode (ITU-T G.652), multimode (ITU-T G.651), dispersion shifted (ITU-T G.653), non-zero dispersion shifted (ITU-T G.655),and other SMF including ITU-T G657 fibers
Average Splicing Loss
0.02dB with G.652and G.657, 0.01dB with G.651 and 0.04dB with G.653 and G.655
Splicing & Heating Time
Typical splicing time:8s, Typical heating time:28s
Return Loss
60dB or greater
Fiber Coating
100μm to 1000μm
Fiber Cladding
80μm to 150μm
Fiber Cleave Length
816mm(coating diameter<250µm), 16mmcoating diameter 2501000µm
10 units factory setting SM program, 10 units factory setting MM program,               and 30 units user setting SM program,30 units user setting MM program
Align Mode
Advanced profile alignment system(PAS)
4000 results
Data Transmission
USB port
                Built-in tube heater
Heat-Shrinkable Tube
40mm60mm and a series of micro Heat-Shrinkable Tubing
Screen Display
Two CMOS cameras,5.6 inch 640*480 LCD., core of the fiber is clearly visible
Lighting for Construction
Built-in super High-brightness LED supply convenience for night work
300X for single X or Y view,
300X for X and Y view(left/right),150X for X and Y view(up/down)
Work mode
Automatic, Manual
General Specifications
Power Supply
Alternating Current:100-240 50Hz/60Hz 30W, Direct current:13.5V/4.5A            Built in 11.1V Li-ion battery charger and AC adaptor
Battery Life
Support 220 times splicing and heating on one charge(3.5hours) at least
Battery Lifetime
Cycle life up to 300500 times, replaceable
Tension Test
Electrode Lifetime
>4000 times, replaceable
Operating Temperature
-25℃ ~ 50
Storage Temperature
-40℃ ~ 80
Relative Humidity
0 to 95% (non-condensing)
Work Altitude
0~5000 meters
Instrument Weight
2.3kg(no battery ), 2.8kg(including battery)
Dimensions(L x W x H)
Package G.W/N.W
Package (L x W x H)

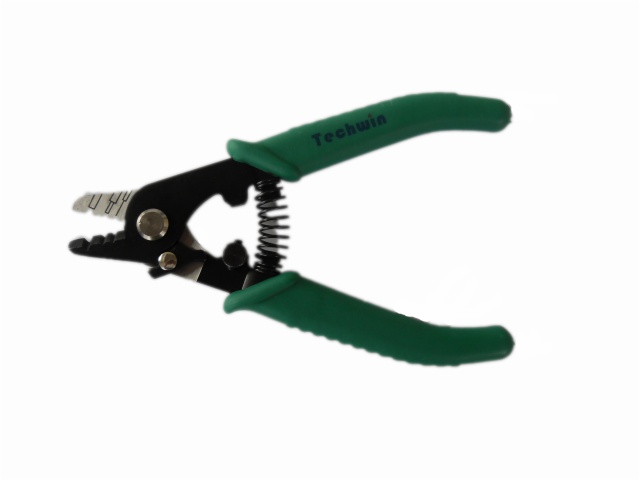

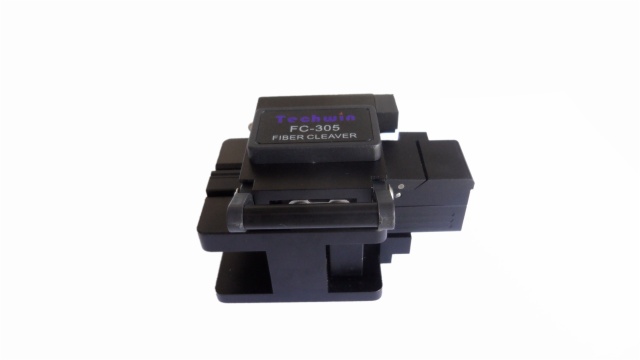

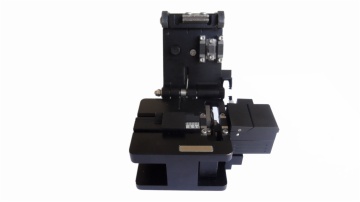

ARC Fusion Splicer, Carrying Case, High Precision Fiber Cleaver, Tri-hole Fiber Coat Stripper, AC Adapter/Battery Charger, Battery Charger Cord, Battery Pack, Spare Electrodes(one pair), Blower Brush, V-groove Cleaning, Quick Reference Guide, Video Instruction Manual, Cooling Tray, Alcohol Dispenser, Monitor Coating, Monitor Cover, USB Flash Disk.
