Usage and safety regulation:

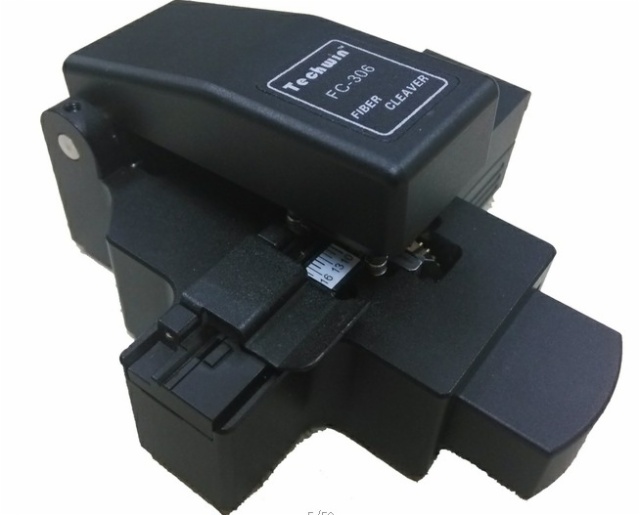

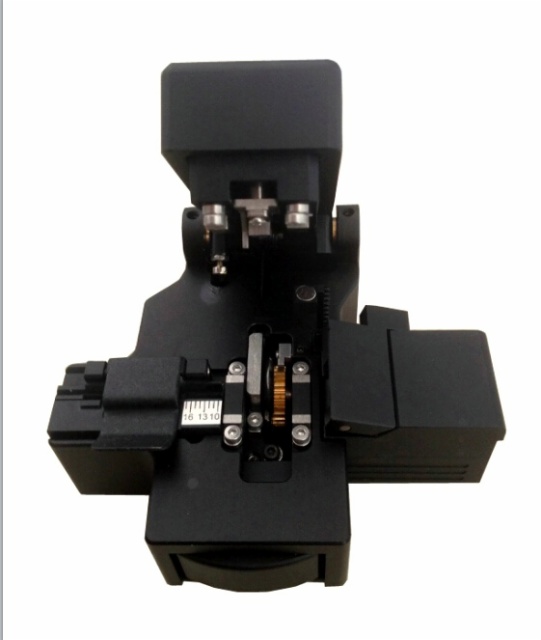

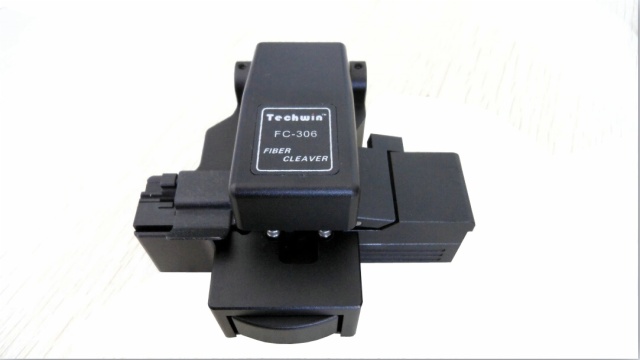

Before using FC-306 fiber cleaver, please read this manual carefully;
Be cautious to use FC-306 in case harm;
Do not touch the blade with hand when use or repair FC-306;
Do not take down or oil FC-306;
Keep FC-306 away from humid and dusty environment.
Technical Specifications:
|
Applicable range
|
Single Core Fiber / Ribbon Fiber
|
|
Coating Diameter
|
φ0.25mm - φ0.9mm(Single) / 0.25mm(Ribbon)
|
|
Cladding Diameter
|
0.125mm
|
|
Cleave Length |
5~30mm
|
|
Typical Cleaving Angle |
<0.5°
|
|
Maximum Blade Life |
78,000 times (3,000*26)
|
|
Number of Steps for Cleave |
One Step
|
|
Automatic Scrap Collection |
Included
|
|
Automatic Blade Rotation |
Yes
|
|
Dimension |
110mm(W)*110mm(D)*40mm(H)
|
|
Weight |
320g
|
