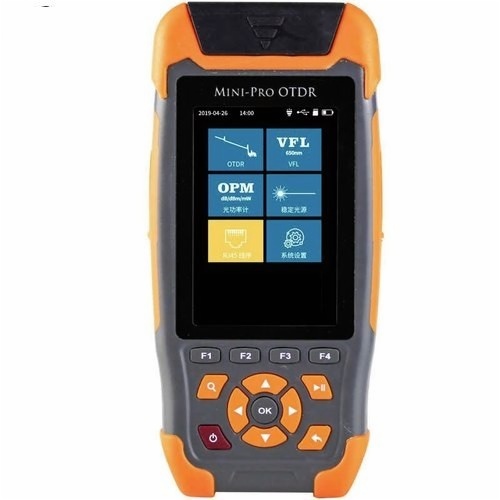

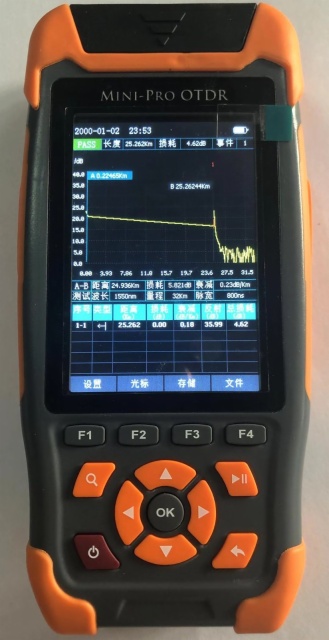

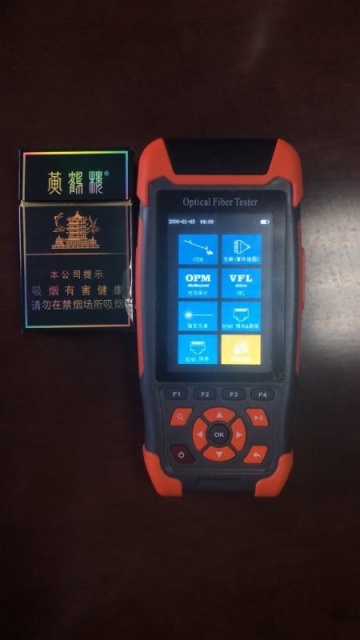

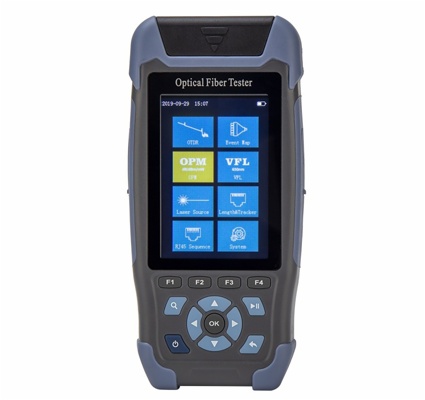

Mini Pro OTDR TW2100E-Pro
Techwin Mini Pro OTDR TW2100E-Pro（Optical Time-Domain Reflectometer） is the most portable test instrument in the industry. It adopts the OTDR technical principles and integrates the powerful analysis software, which enables the fiber ranger detect fiber faults location more accurate and easier.
Features
*Portable, rugged, lightweight; Easy to use.
*More accurate testing results and better repeatability.
*Automatic Pulse Width Control design to ensure a convenient operation.
*Easy to identify the faults location.
*Built-in visual fault locator (VFL), conveniently to find the faults in dead zone.
*Dust, water and shock proof, designed for field use.
*Long battery life, up to 5000 measurements operation.
*2.6 inch screen, data saves in SOR format.
Specifications
|
Model
|
TW2100E-Pro
|
|
Wavelength
|
1310/1550nm
|
|
Type of fiber
|
9/125um SM Fiber
|
|
Connector
|
FC、SC/PC
|
|
Dynamic Range
|
24/22dB
|
|
Pulse Width
|
10ns~ 2.5us，Auto
|
|
Measurement
|
m
|
|
Event blind zone
|
3m
|
|
Attenuation blind
|
8m
|
|
Range accuracy
|
±（0.2m+2×10-4×distance）
|
|
OPM
|
-50~+26dBm
|
|
VFL
|
≥1mW
|
|
iLOM (Event Map)
|
|
|
Power Supply
|
Re-charged battery
|
|
Battery Work time
|
≥2000 times measure
|
|
Save Data
|
＞500
|
|
Humidity
|
0~85%（no condensation）
|
|
Net weight
|
400g
|
