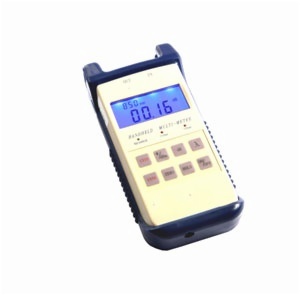

Multi-Meter TW3204
integrates both an optical power meter module and an optical light source module and can perform closed-loop tests by using both modules,and can also work individually. It is specifically designed for technical support personnel to test a variety of instruments with a single meter and thus satisfy the user by providing a choice of greater convenience and more advantages.
Features
- Includes all the outstanding functions of the handheld power meter (TW3203R)
- Includes all the outstanding functions of the handheld stable light source(TW3104)
- Perfect combination to make your fiber measurements more convenient.
- Different light sources and power meters can be built into TW3204
Applications
Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements
Specifications
Type
|
TW3204A
|
TW3204B
|
TW3204C
|
TW3204D
|
Optical Power Meter Module
|
Detector Type
|
IngaAs
|
Measurement Range(dBm)
|
-70~+3
|
-60~+10
|
-30~+20
|
-20~+30
|
Uncertainty
|
5%
|
Calibrated wavelengths(nm)
|
850,980,1310,1550nm
|
Rosolution(dB)
|
0.01
|
Optical Connector
|
FC(interchangeable SC,ST)
|
Optical Light Source Module
|
Emitter Type
|
FP-LD
|
Wavelengths
|
1310/1550(other wavelengths can be optional)
|
Ouput Power(dBm)
|
-7
|
Spectral Width
|
≤10nm
|
Output Stability
|
±0.05dB/15mins; ±0.1dB/ 8hours
|
Optical Connector
|
FC/ PC
|
General Specifications of Multi Meter
|
Power Supply
|
Rechargeable Battery + Power Supply Adaptor
|
Battery Operating Time
|
≥4 hours(Both Power Meter and Ligh Source are working) ≥28hours(Only Power Meter is working)
|
Auto-off time
|
10mins
|
Operating Temperature(℃)
|
-10~+60
|
Storage Temperature(℃)
|
-25~+70
|
Dimension(mm)
|
180X85X30
|
Weight (g)
|
340
|
Standard Packages
MODEL
|
INCLUDES
|
All TW3204 Models
|
TW3204 Optical Multimeter, Protective Rubber Boot, Rechargeable battery, Power Supply Adaptor, Instruction Manul and Contton Tampon.
|
