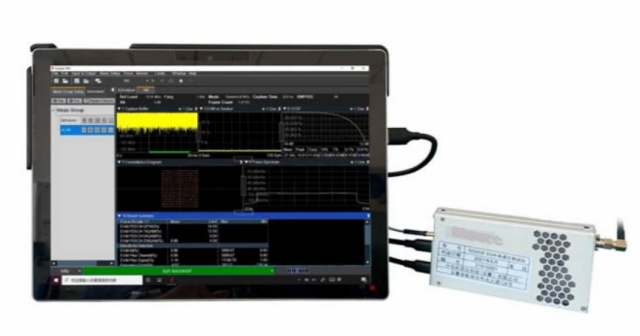

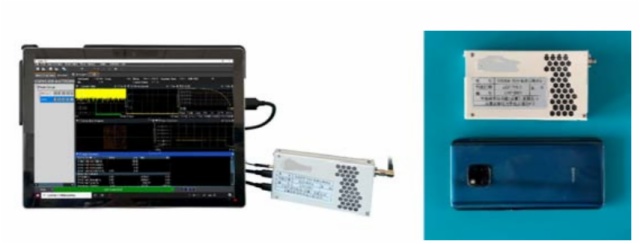

Techwin 5G Communication Tester TW5000
|
|
Frequency
|
|
Frequency range
|
9Hz~20GHz
|
|
Reference frequency
|
Inside or outside, the program control switch
|
|
Internal base frequency accuracy +/-- 1 ppm within 10 MHz
|
|
Internal base was aged <1 ppm / year at 10 MHz and temperature drift <1 ppm / ℃
|
|
Spectral purity
|
|
SSB phase noise
|
dBc/Hz
|
|
Carrier frequency
|
30 MHz
|
500 MHz
|
1 GHz
|
3 GHz
|
6 GHz
|
9 GHz
|
|
1KHz
|
-114.7
|
-99.5
|
-99.5
|
-95.6
|
-95.6
|
-85.2
|
|
10KHz
|
-132.7
|
-106.8
|
-106.6
|
-108.4
|
-108.4
|
-101.9
|
|
100KHz
|
-134.5
|
-107.4
|
-105.5
|
-107.3
|
-107.3
|
-101.8
|
|
1MHz
|
-136.7
|
-128.8
|
-128.4
|
-129.5
|
-129.5
|
-120.2
|
|
10MHz
|
-137.8
|
-129.7
|
-129.5
|
-132.2
|
-131.4
|
-131.2
|
|
Image rejection
|
Typical value> 90dBc (optimization algorithm off)
Typical value> 95dBc (optimization algorithm on)
|
|
Medium frequency suppression
|
Typical value > 95dBc
|
|
Fixed point frequency and miscellaneous dispersion
|
Maximum intensity <100MHz, 300Hz, 300MHz, 500MHz, 1500MHz and 1-85dBFs
|
|
Spectral purity-input-related hybrid dispersion
|
|
This vibration is scattered
|
<-70dBc (optimization algorithm turned off) (off-center frequency +/- N * 100MHz,
N = 1,3,5 …)
<-95dBc, (optimization algorithm turned on)
|
|
Enter the related miscellaneous
|
<-65dBc (optimization algorithm turned off)
|
|
Medium frequency signal processing
|
|
Analysis bandwidth
|
80MHz
|
|
ADC for anti-aliasing
|
>65dBc
|
|
Numbers, IQ, Data
|
200MSPS, 16bit (including digital signal processing) (ADC native bit width of 14bit or 12bit)
|
|
Storage depth
|
Module built-in cache of 125MBytes (extraction multiple =1, recording bandwidth = 80MHz)
|
|
Flow disk to the external hard only depends on the hard disk capacity
(Extraction multiple 2, recording bandwidth, recording bandwidth = 80MHz / extraction multiple)
|
|
Extraction multiple
|
1,2,4,8,16,32,40,48,64,80,100,128... 504,000,800,000 over 40 gears
|
|
Analog medium frequency output
|
250MHz +/-40MHz
|
|
Range
|
|
Maximum destructive input power
(continuous wave)
|
23dBm
|
30 MHz~20GHz with reference level 0dBm (Receiver low gain state)
|
|
10dBm
|
100kHz~30MHz or reference level <0dBm (Receiver high gain state)
|
|
Maximum DC voltage
|
+/-12 VDC
|
|
Indication range
|
DANL~23 dBm
|
|
Absolute level accuracy
|
+/- 1.5 dB
|
|
Mid-band internal flatness
|
+/-1.75 dB (40MHz analog IF bandwidth gear)
+/-2.0 dB (80MHz analog IF bandwidth range)
|
|
Reference level (R.L.）
|
-50dBm~23dBm (40MHz analog IF bandwidth shift)
-65dBm~23dBm (80MHz analog IF bandwidth shift)
|
|
Display the average Noise Power (DANL)
RBW = 10kHz
RMS demodulation
|
Frequency range
|
R.L.= -20 dBm
（IF Gain Grade = 2）
|
R.L.= -40 dBm
（IF Gain Grade = 2）
|
|
9KHz ~100KHz
|
TBD
|
TBD
|
|
100KHz ~500MHz
|
≤-150.2 dBm/Hz
|
≤-157.2 dBm/Hz
|
|
500MHz~700MHz
|
≤-153.5 dBm/Hz
|
≤-167.8 dBm/Hz
|
|
700MHz~2.7GHz
|
≤-153.2 dBm/Hz
|
≤-167.7 dBm/Hz
|
|
2.7GHz~4.5GHz
|
≤-153.2 dBm/Hz
|
≤-166.8 dBm/Hz
|
|
4.5GHz~8.5GHz
|
≤-153.4 dBm/Hz
|
≤-164.1 dBm/Hz
|
|
8.5GHz~9GHz
|
≤-150.1 dBm/Hz
|
≤-161.2 dBm/Hz
|
|
9GHz~20GHz
|
≤-150 dBm/Hz
|
≤-160.1 dBm/Hz
|
|
Standard FFT annual profiling settings
|
|
FFT window type
|
Flat-top window, Blackman-Nuttall window (B-Nuttall window)
|
|
Scan time control
|
Support, provide maximum power detection, average, and maximum value to keep detection
|
|
Resolution bandwidth
|
1H z~10MHz
|
|
Video bandwidth settings
|
Provides gear settings for the VBW to RBW ratio
|
|
The way of trace and line detection
|
Normal, sampling, positive peak, negative peak, root mean square values
|
|
Trace output point number setting
|
The system automatically matches the number of set traces closest to the target value
|
|
Spectrum scanning speed
|
1360 GHz/s
|
RBW=1MHz, Blackman-Nuttall window, power consumption control turned off
|
|
910 GHz/s
|
RBW=100kHz, Blackman-Nuttall window, power control turned off
|
|
137 GHz/s
|
RBW=25kHz, Blackman-Nuttall window, power consumption control turned off
|
|
General specification
|
|
IO
|
Source
|
Type-C, a special power supply port
|
|
CI
|
Type -C, USB3.0
(USB2.0 Available but with limited bandwidth)
|
|
RF input port
|
S MA (F), with an input impedance of 50
|
|
10MHz Reference clock input
|
M MCX (F), with an amplitude of 1.5V pp;
Input an impedance of 330Ω
|
|
Analog medium frequency output
|
M MCX (F), maximum output power -25dBm,
Output impedance of 50
|
|
Trigger, GPIO, serial port
|
Special expansion port, used with IO board (option)
|
|
power dissipation
|
Peak power consumption is 10.5W, and the power consumption is adjustable in the range of 6W~10.5W
|
|
working temperature
|
0~80℃
|
|
-20~80℃ (option) (excluding enclosure)
|
|
Storage temperature
|
-40~85℃ (option) (excluding enclosure)
|
|

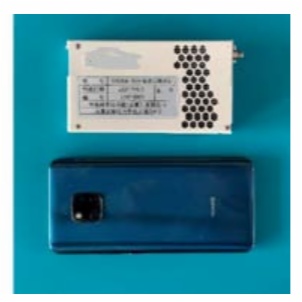

Probe size
|
118x60x16mm, 188g (excluding protective shell and structural fittings)
131x69x29mm, 365g (including protective shell and structural fittings)
|
|

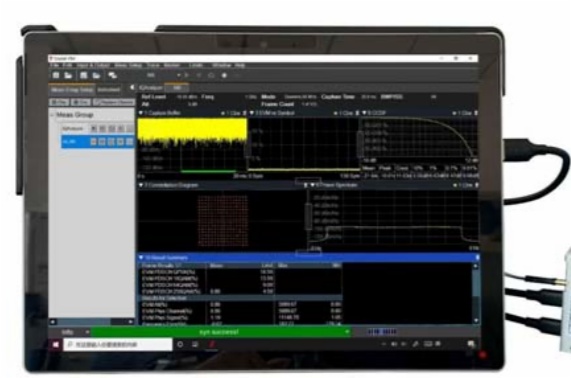

5GNR standard signal resolution
|
|
Link direction
|
Downlink (OFDMA), Uplink (SC-FDMA)
|
|
Sub-carrier interval
|
15kHz, 30kHz, 60kHz
|
|
Tape width
|
5MHz, 10MHz, 15MHz, 20MHz, 25MHz, 30MHz, 40MHz, 50MHz, 60MHz, 70MHz, 80MHz, 90MHz, 100MHz
|
|
Physical channel
|
PBCH, PDCCH, PDSCH, PRACH, PUCCH, PUSCH
|
|
Modulation type
|
QPSK , 16QAM , 64QAM , 256QAM
|
|
Test pattern
|
NR-FR1-TM1_1, NR-FR1-TM1_2, NR-FR1-TM 2, NR-FR1-TM 2a, NR-FR1-TM 3_1, NR-FR1-TM 3_1a, NR-FR1-TM 3_2, NR-FR1-TM 3_3
|
|
RSTP
|
The RSTP measurements are supported
|
|
RSSI
|
Support for the RSSI measurements
|
|
OSTP
|
Support for the OSTP measurements
|
|
Crest Factor
|
Support for Crest Factor measurement
|
|
IQ offset
|
Support for the down-side signal IQ, offset measurement
|
|
EVM
|
EVM Phys Channel/EVM Phys Signal/ EVM vs RB/ EVM vs Subframe
|
|
Frequency deviation measurement
|
Support for the uplink/ downlink signal frequency bias measurement
|
|
Power spectrum
|
Support for power spectrum measurement and display
|
|
CCDF
|
Support for CCDF measurement and display
|
|
Constellation diagram
|
Support up/down signal constellation display
|
|
Standard TD-LTE/ FDD-LTE signal analysis
|
|
Duplex mode
|
TDD, FDD
|
|
Link direction
|
Downlink(OFDMA), Uplink(SC-FDMA)
|
|
The TDD sub-frame configuration
|
UL/DL Configuration：0~6
Special Subframe Configuration：0~9
|
|
Physical channel
|
C RS, PSS, SSS, PBCH, PCFICH, PHICH, PDCCH, PDSCH , DM RS, PRACH, PUCCH, PUSCH
|
|
Modulation type
|
QPSK , 16QAM , 64QAM , 256QAM
|
|
Tape width
|
1.4MHz, 3MHz, 5MHz, 10MHz, 15MHz, 20MHz
|
|
E-TM pattern
|
E-TM1_1, E-TM1_2, E-TM2, E-TM2a, E-TM3_1, E-TM3_1a, E-TM3_2, E-TM3_3
|
|
RSTP
|
The RSTP measurements are supported
|
|
RSSI
|
Support for the RSSI measurements
|
|
OSTP
|
Support for the OSTP measurements
|
|
Crest Factor
|
Support for Crest Factor measurement
|
|
IQ offset
|
Support for the down-side signal I Q, offset measurement
|
|
EVM
|
EVM vs Carrier/EVM vs Symbol/ EVM vs RB/ EVM vs Subframe
|
|
Frequency deviation measurement
|
Support for the uplink / downlink signal frequency bias measurement
|
|
Power spectrum
|
Support for power spectrum measurement and display
|
|
CCDF
|
Support for CCDF measurement and display
|
|
Constellation diagram
|
Support up/ down signal constellation display
|
|
NB-loT signal analysis
|
|
Deployment mode
|
Standalone, In_band, Guard_band
|
|
Tape width
|
200kHz, 3MHz, 5MHz, 10MHz, 15MHz, 20MHz
|
|
Down link
|
OFDMA(15kHz)
|
|
Uplink
|
Single-tone(15kHz/3.75kHz)
SC-FDMA(15kHz)
|
|
Physical channel
|
NPSS, NSSS, NPBCH, NPDCCH, NPDSCH, NRS, NPUSCH, NPRACH
|
|
Modulation mode
|
pi/2-BPSK, pi/4-QPSK, QPSK
|
|
E-TM pattern
|
N-TM_Guardband, N-TM_Guardband_With_E-TM1_1, N-TM_Inband_DifferentPCI, N-TM_In band_SamePCI, N-TM_In band_With_E-TM1_1, N-TM_Standalone
|
|
RSTP
|
The RSTP measurements are supported
|
|
RSSI
|
Support for the RSSI measurements
|
|
OSTP
|
Support for the OSTP measurements
|
|
Crest Factor
|
Support for Crest Factor measurement
|
|
IQ offset
|
Support for the down-side signal I Q, offset measurement
|
|
EVM
|
EVM vs Carrier, EVM vs Symbol, EVM vs RB, EVM vs Sub-frame
|
|
Frequency deviation measurement
|
Support for the uplink/ downlink signal frequency bias measurement
|
|
Power spectrum
|
Support for power spectrum measurement and display
|
|
CCDF
|
Support for CCDF measurement and display
|
|
Constellation diagram
|
Support up /down signal constellation display
|
|
WCDMA signal resolution
|
|
Signal power
|
Support for the signal power measurement
|
|
Code power
|
Support for the code channel power measurement
|
|
Code power error
|
Support for the code channel power error measurement
|
|
Symbol EVM
|
Support for Symbol EVM measurement
|
|
Frequency error
|
Support for the frequency error measurement
|
|
Range error
|
Support for amplitude error measurement
|
|
Phase error
|
Support for the phase error measurement
|
|
I/Q Offset
|
Support for the I/Q Offset measurement
|
|
Modulation type detection
|
Support for modulation type detection
|
|
Pilot bit detection
|
Support for pilot-bit detection
|
|
Statistical measurement of the number of lanes
|
Statistical measurements of the activated channel number are supported
|
|
Symbolic rate detection
|
Support for symbol rate detection
|
|
All code tests
|
Support the detection of all the code channels of the measurement signal
|
|
GSM signal resolution
|
|
Amplitude of the error vector (EVM)
|
Support for EVM testing
|
|
Amplitude error (ME)
|
Support, ME, test
|
|
Phase error (PE)
|
Support, PE, test
|
|
Frequency error
|
Support for the frequency error test
|
|
Power test
|
Support, Power, testing
|
|
Carrier leak
|
Support for the carrier leak test
|
|
PvT
|
Support for PvT testing and display
|
|
Constellation diagram
|
Supporting the signal constellation diagram display
|
|
|
|
|
|
|
|
|
|
|
|
|
